| 型号:CRST4100&4101 信号继电器 |
| 尺寸:15.5X10X11.5mm |
| 触点形式:1A,1B,1C |
| 额定负载:3A/120VAC,24VDC |
|
|
| |
|
|
|
特点 Features |
1,线圈功耗低 Low coil power consumption.
2,高灵敏度 High sensitivity.
3,体积小，重量轻 Small size,Light weight .
4,可直接焊接在印刷细路板中 PC board mounting.
5,可用于自动装置,通讯设备,无线电遥控,声控玩具 Suitable for automation facilities,telecommunication equipment,household electrical appliance,wireless radio remote control,sound control toys application etc |
订货信息 Ordering information |
CRST4100--C-S-DC12V-L
1 2 3 4 5 |
1,型号 Part number: CRST4100 & CRST4101 2,触点形式 Contact arrangementC:1C
3,封装形式:S:试水式;无:防尘式 Enclosure: S:Sealed type; Z:Dust cover
4,线圈额定电压 Coil Rated voltage(V):DC:3,5,6,9,12,24
5,线圈功耗Coil power consumption:无Nil 0.36W(标准Standard);L:0.2W(高灵敏度High sensitivity) |
触点数据 Contact data |
触点形式 Contact Arrangement |
1C(1Z)(SPDT) |
触点材料 Contact Material |
AgNi, Ag |
触点负载(阻性) Conatct Rating(Resistive) |
1A/240VAC;2A/120VAC;2A/24VDC |
最大切换功率Max.Switching Power |
150W 625VA |
最大切换电压 Max.Switching Voltage |
60VDC 220VAC 最大切换电流Max.Switching Current:5A |
触点阻性或压降 Contact Resistance or Voltage Drop |
≤50mΩ |
寿命 Operation Life |
电气 Electrical |
105 |
机械 Mechanical |
107 |
线圈参数 Coil Parameter |
线圈电压
Coil voltage
(VDC) |
线圈电阻
Coil Resistance
Ω±10% |
吸合电压VDC(最大)
Pick up Voltage VDC(Max)
(额定电压的75%)
(75% of rated voltage) |
释放电压VDC
Release voltage VDC(Min)
(额定电压的5%)
(5% of rated voltage) |
线圈功耗
Coil power consumption
(W) |
动作时间
Operate Time
(mS) |
释放时间
Release Time
(mS) |
额定
Rated |
最大
Max |
5 |
5.5 |
125 |
3.75 |
0.5 |
0.2 |
≤5 |
≤5 |
9 |
9.9 |
405 |
6.75 |
0.9 |
12 |
13.2 |
720 |
9.00 |
1.2 |
24 |
26.5 |
2880 |
18.0 |
2.4 |
5 |
5.5 |
75 |
3.75 |
0.5 |
0.36 |
9 |
9.9 |
225 |
6.75 |
0.9 |
12 |
13.2 |
400 |
9.00 |
1.2 |
24 |
26.5 |
1600 |
18.0 |
2.4 |
技术特性 Operation condition |
绝缘电阻 Insulation Resistance |
最少 100MΩ min(at 500VDC) |
介质耐压 Dielectric Strength
断开触点间 Between Contacts
触点与线圈间 Between Contacts and Coil |
50Hz 500V
50Hz 500V |
耐冲击 Shock Resistance |
100m/s2 11ms |
抗振性 Vibration Resistance |
10~55Hz 双振幅 Double amplitude 1.5mm |
引出端强度 Terminals Strength |
5N 4N(PCB) |
可焊性 Solderability |
235±2℃ 3±0.5s℃ |
环境温度 Ambient Temperature |
-25~70℃ |
相当湿度 Relative Humidity |
85%(at 40℃) |
质(重)量 Mass |
3.5g |

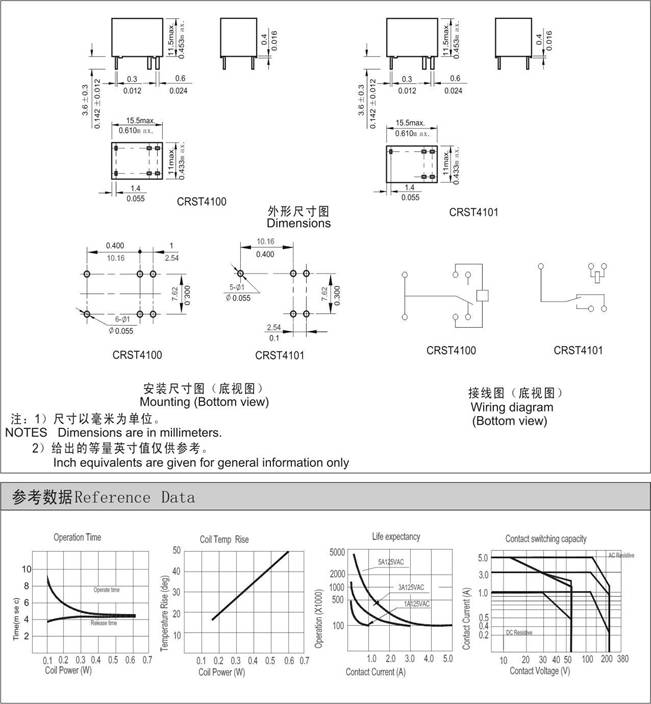

外形尺寸 Dimensions(mm/Inch) |
|
|
| |
|
|
